TopXGun FP800 Agricultural Drone
Video FAQ Downloads Contact Us

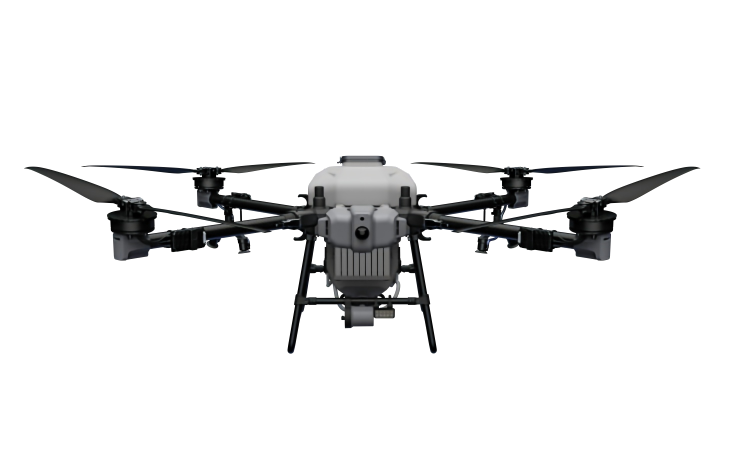

TopXGun FP800 Agricultural Drone

TopXGun FP800 Agricultural Drone

Powering Smarter Farming

80L Spraying Tank | 120L Spreading Tank | 85kg Max Payload



  • Spray Tank Capacity :

    80L

  • Spread Tank Capacity :

    120L

  • Max Payload :

    85kg

  • Max Flow Rate :

    40L/min

  • Spreader Type :

    Auger Feeder Feeding

  • Droplet Size :

    30-500µm

  • Max Discharge Rate :

    400L/min

  • Radar System :

    LiDAR + mmWave Phased Array Radar
Inquiry Now

  •

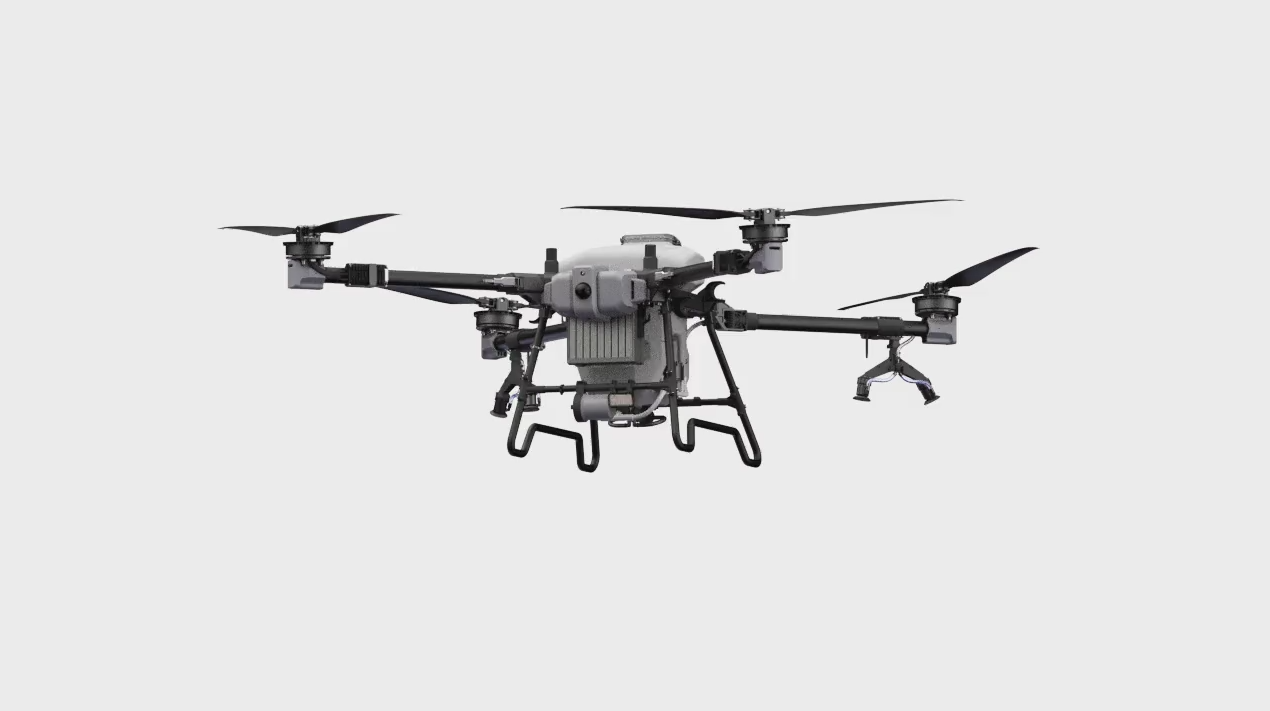

    FP800 Agricultural Drone
    Powering Smarter Farming



    Platform Design



    Aerospace-grade aluminum frame with IP67 protection

    63″ high-performance propellers, durable and heat-resistant

    Foldable arms for rapid transition and transport

    Neatly routed wiring harness for improved maintenance efficiency







    Spraying Solution

    • Four
      Rear-mounted centrifugal nozzles
    • 40L/min
      Max flow rate
    • 30-500μm
      Adjustable atomized droplets
    • Within 5%
      Spraying accuracy deviation





    Four rear-mounted centrifugal nozzles

    up to 10m spray width



    Dual-channel high-flow metering pumps

    40L/min max flow rate







    Spreading Solution

    • Multiple
      Auger feeder types
    •       10m
                    Max spreading width
    •    400L/min*
             Max feeding rate
               *Tested with medium-granule urea



    Precise auger feed for accurate dosing



    Centrifugal disc delivers uniform spreading width up to 10m





    Compatible with multiple auger feeder types

    Ultra-low application rates supported











    Lifting Solution

    85kg maximum payload, with high-strength lifting rope



    Smart anti-sway system enabling stable flight Automated hook release upon landing to simplify operations Real-time weighing with visualized data



    Power Solution


    High-voltage intelligent battery for upgraded endurance

    Grid-designed structure for efficient heat dissipation

    12kW air-cooled charger with high-temperature protection

    Dual-battery cycle fast charging ensures continuous operation







    Smart Safety, All-round Sensing



    Dual radar system: LiDAR + mmWave phased-array radar

    360° scanning for broad-range obstacle detection





    Simultaneous tracking of dynamic and static targets, planning optimal avoidance routes in real time

    Intelligent avoidance of low-altitude obstacles









    Full-Color FPV, Clear Vision







    Full-color FPV delivering clear image details even in low-light conditions

    Dual 80W high-brightness lights with strong night illumination

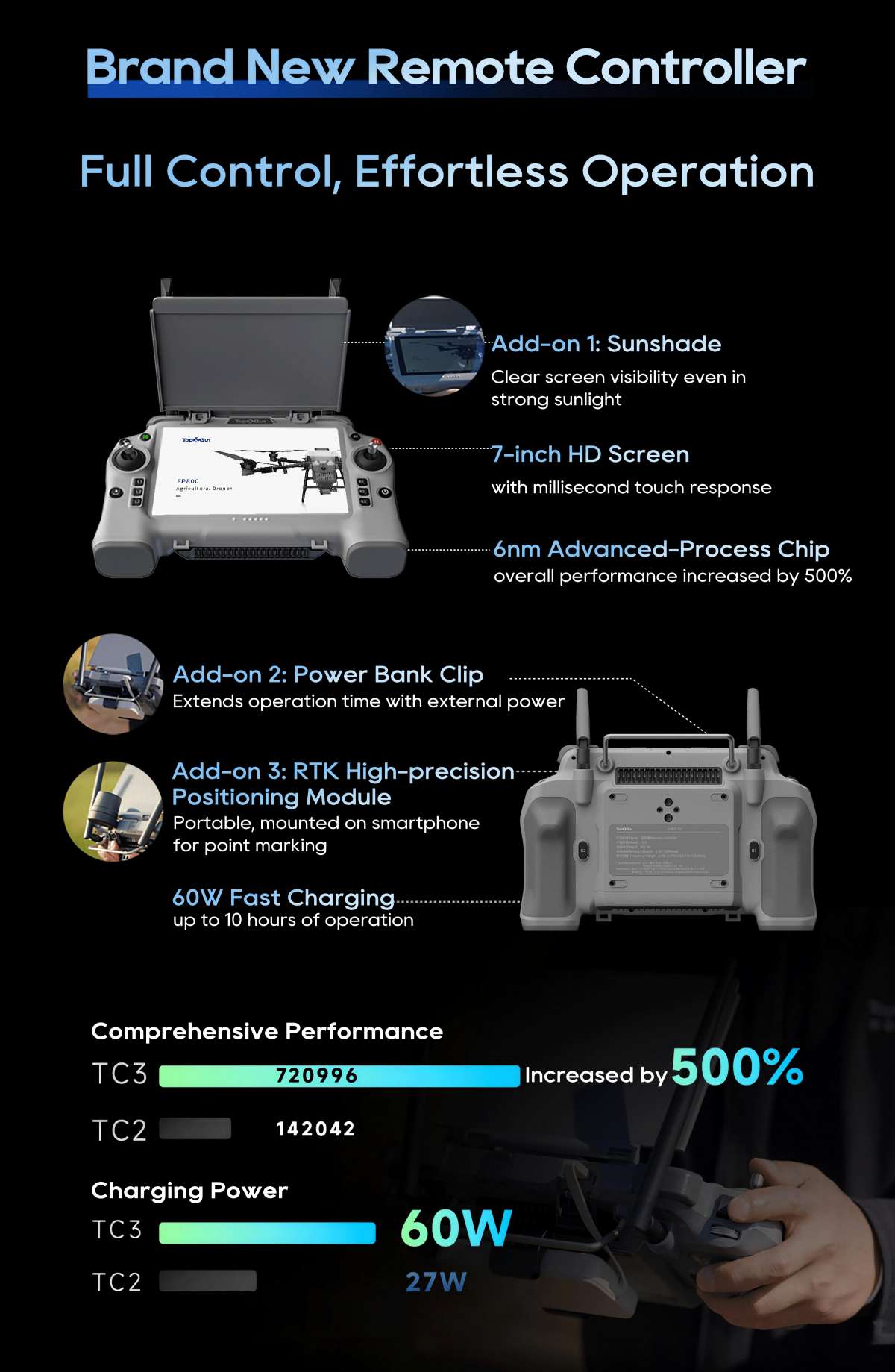

    Brand New Remote Controller

    Full Control, Effortless Operation



    TopXGun TC3 Agri Drone Remote Control
